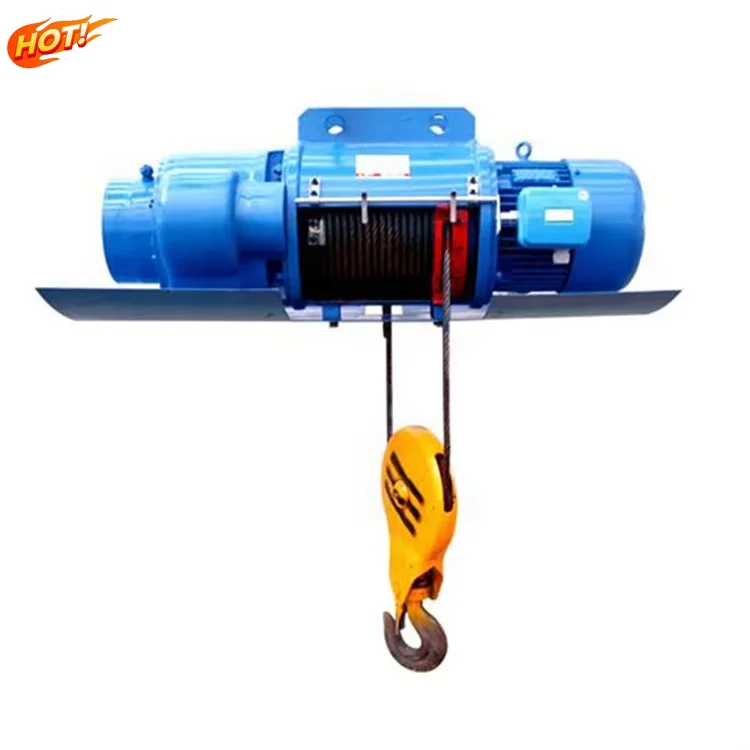

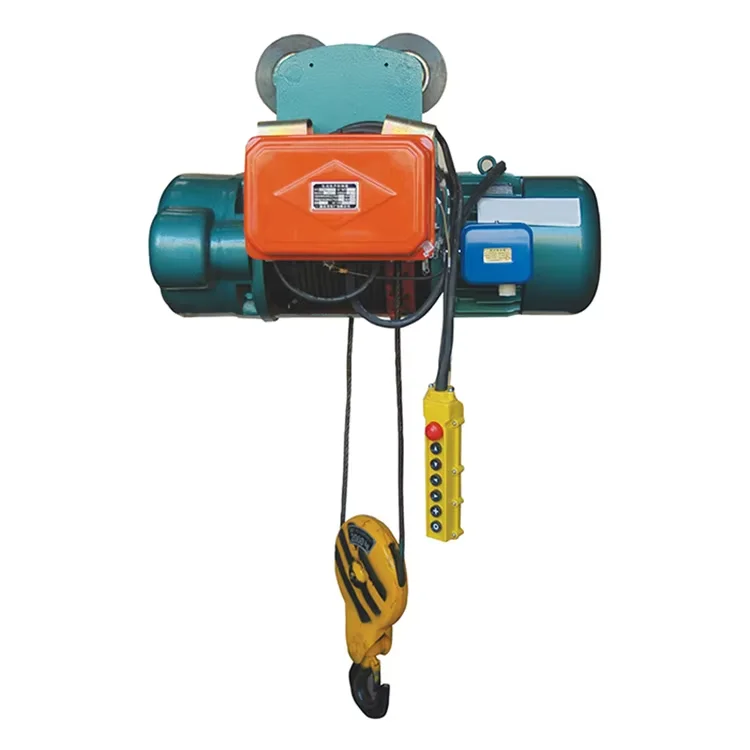

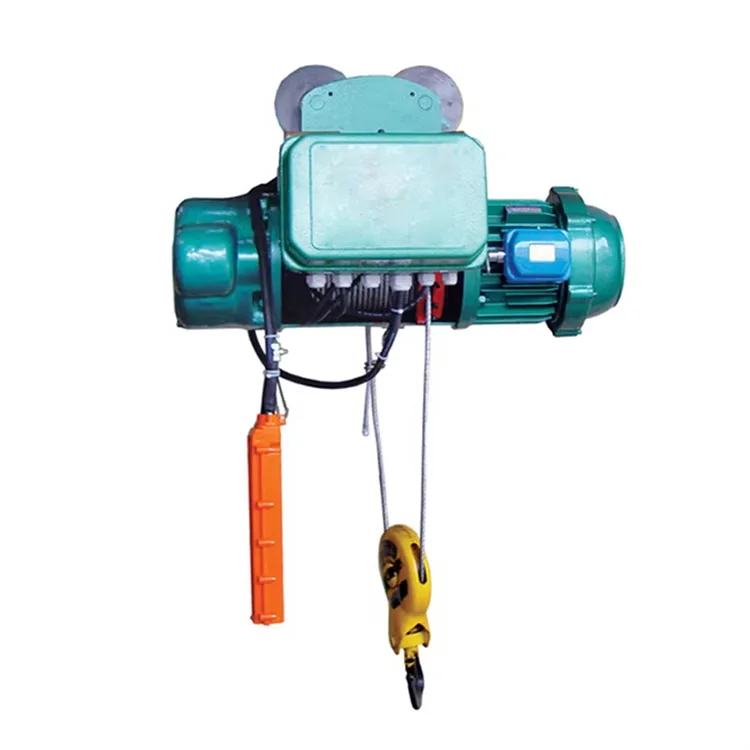

Single Double Lifitng Speed Cd Model Steel Wire Rope 4 Ton 5 Ton Hoist With Trolley

Single Double Lifitng Speed Cd Model Steel Wire Rope 4 Ton 5 Ton Hoist With Trolley

-Lifting Height(M): 6/9/12/18/24/30

-Lifting Speed(M/Min): 8

Description FAQ Contact Us

single double lifitng speed cd model steel wire rope 4 ton 5 ton hoist with trolley-6

Specification

Model	CD
Capacity (T)	0.5	1	2	3	5	10	16	20
Grade	M3	M3	M3	M3	M3	M3	M3	M3
Lifting Height(M)	6/9/12/18/24/30								9/12	8/10/15/24
Lifting Speed(M/Min)	8
Liftingmotor Power(Kw)	0.8	1.5	3	4.5	7.5	13	13	13
Runningmotor Power(Kw)	0.2	0.2	0.4	0.4	0.8	0.8*2	0.8*2	0.8*4
C （mm）	650	667	840	954	1120	1350	1400	1500

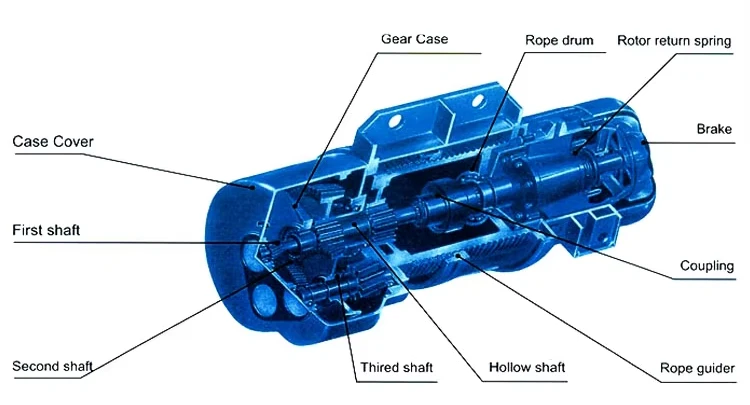

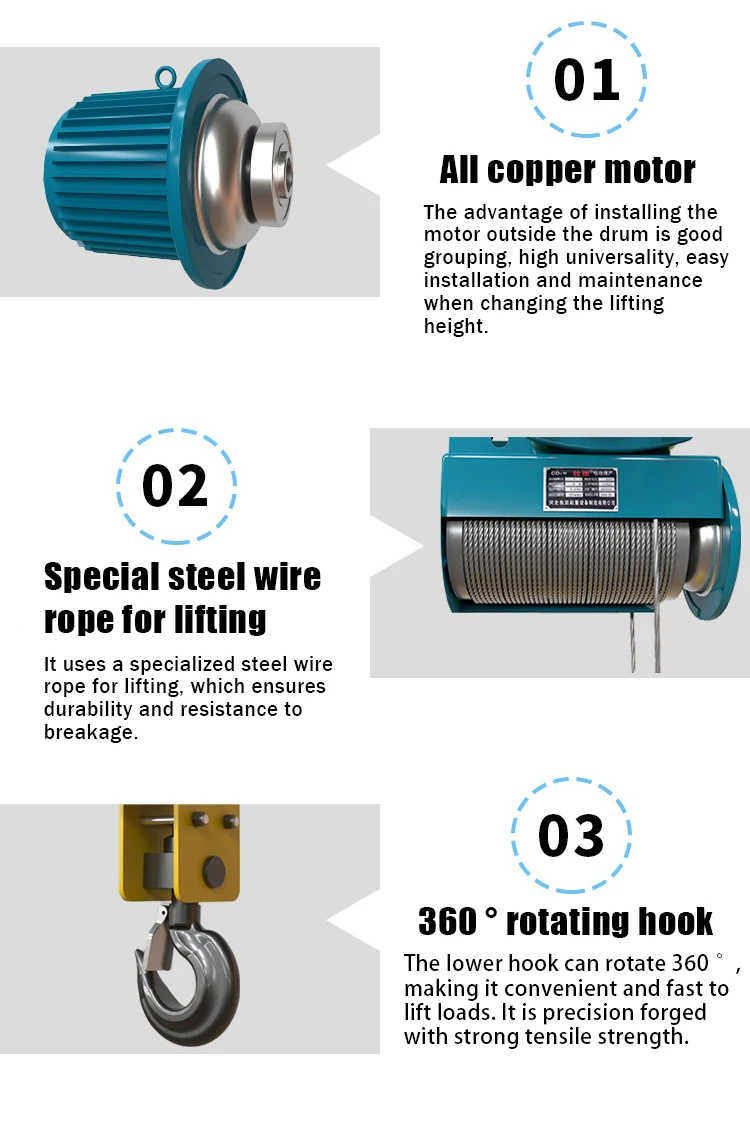

Detail Display

single double lifitng speed cd model steel wire rope 4 ton 5 ton hoist with trolley-7

single double lifitng speed cd model steel wire rope 4 ton 5 ton hoist with trolley-8

single double lifitng speed cd model steel wire rope 4 ton 5 ton hoist with trolley-9

Application Scenarios

single double lifitng speed cd model steel wire rope 4 ton 5 ton hoist with trolley-10

Certifications

single double lifitng speed cd model steel wire rope 4 ton 5 ton hoist with trolley-11

Company Profile

single double lifitng speed cd model steel wire rope 4 ton 5 ton hoist with trolley-12

Henan Yixing Lifting Machinery Co., Ltd.

is a professional supplier of material handling equipment. We have the strength to provide full life cycle services for lifting equipment, including design, manufacturing, installation, and after-sales service.Therefore, we are strategic partners of several well-known.

single double lifitng speed cd model steel wire rope 4 ton 5 ton hoist with trolley-13

single double lifitng speed cd model steel wire rope 4 ton 5 ton hoist with trolley-14

single double lifitng speed cd model steel wire rope 4 ton 5 ton hoist with trolley-15

single double lifitng speed cd model steel wire rope 4 ton 5 ton hoist with trolley-16

single double lifitng speed cd model steel wire rope 4 ton 5 ton hoist with trolley-17

Packing & Delivery

single double lifitng speed cd model steel wire rope 4 ton 5 ton hoist with trolley-18

single double lifitng speed cd model steel wire rope 4 ton 5 ton hoist with trolley-19

single double lifitng speed cd model steel wire rope 4 ton 5 ton hoist with trolley-20

Customer & Feedback

single double lifitng speed cd model steel wire rope 4 ton 5 ton hoist with trolley-21

single double lifitng speed cd model steel wire rope 4 ton 5 ton hoist with trolley-22

single double lifitng speed cd model steel wire rope 4 ton 5 ton hoist with trolley-23

Q1: WHAT DO I NEED TO OFFER WHEN PURCHASING CRANES FROM YOU?
A1: There are some necessary parameters about the cranes so you can tell us the lifting height,loading weight,span and other details you have. We can offer you a best solution.

Q2:WHAT PAYMENT METHODS DO YOU HAVE?
A2: You can choose the best way to pay and we have many kinds payment method ,such as westlink, paypal, L/C, T/T. Don't worry about this problem.

Q3: WHAT AFTER-SALE SERVICE CAN YOU OFFER?
A3: We are a professional machinery company so we will offer 24/7 service and whenever you have any doubts just contact us. We are happy to help you fix them.

Q4: WHAT TRADE TERMS DO YOU USE?
A4: We often use FOB price and we can change according to your requirements.

Q5: HOW TO SHIP?
A5: The most often shipment method is by sea,which is cheaper than by air. It depends on clients' decision. We will try our best to help you.
